I've been experimenting with over-clocking my primary gaming machine and I became extremely concerned about the constant BSODs I was generating while stability testing with Windows-based tools such as Prime95 and Intel CPU Burn. Knowing how fragile a Windows installation can be, I was keen to reduce the likelihood that my testing would result in a non-booting system.
My initial searches turned up some bootable images, such as the Ultimate Boot CD (UBCD), that came equipped with builds of Prime95, but I finally settled on a specialised Linux Live CD: StressLinux. This is an OpenSuSE derived distribution that comes bundled with the following utilities:
- stress - a basic load generating tool that can stress CPU, memory and disk I/O.
- cpuburn - a collection of utilities for stressing various CPU architectures.
- hddtemp - a tool for reading the system temps from the S.M.A.R.T. information present in modern hard drives.

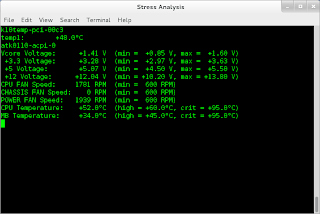

- lm_sensors - a tool for monitoring hardware temperatures; CPU, motherboard, etc.
- mPrime - a Linux version of the popular Prime95 tool.
The reasons I favoured the StressLinux distribution over the UBCD was that the combination of the above utilities allowed me to watch my system temps while running the mPrime/Prime95 torture tests to ascertain where instabilities lay. I was pleased to find the mPrime tool mimicked the functionality of its Windows counterpart, despite being command line driven:
Main Menu
1. Test/Primenet
2. Test/Worker threads
3. Test/Status
4. Test/Continue
5. Test/Exit
6. Advanced/Test
7. Advanced/Time
8. Advanced/P-1
9. Advanced/ECM
10. Advanced/Manual Communication
11. Advanced/Unreserve Exponent
12. Advanced/Quit Gimps
13. Options/CPU
14. Options/Preferences
15. Options/Torture Test
16. Options/Benchmark
17. Help/About
18. Help/About PrimeNet Server
Your choice: 15
Number of torture test threads to run (2):
Choose a type of torture test to run.
1 = Small FFTs (maximum FPU stress, data fits in L2 cache, RAM not tested
much).
2 = In-place large FFTs (maximum heat and power consumption, some RAM
tested).
3 = Blend (tests some of everything, lots of RAM tested).
11,12,13 = Allows you to fine tune the above three selections.
Blend is the default. NOTE: if you fail the blend test, but can pass the
small FFT test then your problem is likely bad memory or a bad memory
controller.
Type of torture test to run (3): 3
Accept the answers above? (Y):
[Main thread Apr 11 23:22] Starting workers.
[Worker #1 Apr 11 23:22] Worker starting
[Worker #2 Apr 11 23:22] Worker starting
[Worker #1 Apr 11 23:22] Setting affinity to run worker on logical CPU #1
[Worker #2 Apr 11 23:22] Setting affinity to run worker on logical CPU #2
[Worker #1 Apr 11 23:22] Beginning a continuous self-test to check your computer.
[Worker #1 Apr 11 23:22] Please read stress.txt. Hit ^C to end this test.
[Worker #2 Apr 11 23:22] Beginning a continuous self-test to check your computer.
[Worker #2 Apr 11 23:22] Please read stress.txt. Hit ^C to end this test.
[Worker #1 Apr 11 23:22] Test 1, 6500 Lucas-Lehmer iterations of M12451841 using AMD K10 type-2 FFT length 640K, Pass1=640, Pass2=1K.
[Worker #2 Apr 11 23:22] Test 1, 6500 Lucas-Lehmer iterations of M12451841 using AMD K10 type-2 FFT length 640K, Pass1=640, Pass2=1K.
